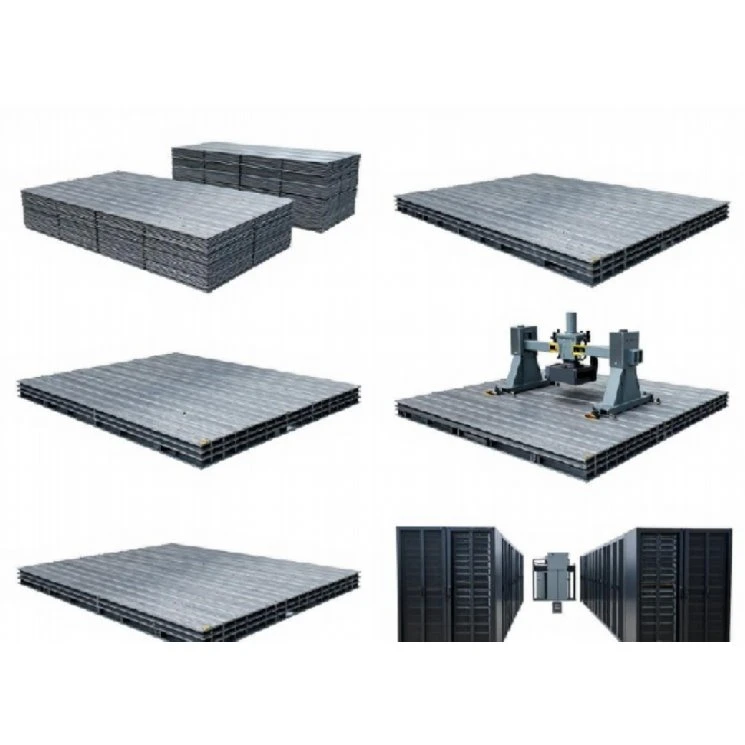

High-Load Raised Access Floor Nhyehyɛe
Fineco High-Load Raised Access Floor System no ma structure underfloor plenum management ne adesoa a emu yɛ duru-adwuma mu mmoa ma mission-critical facilities. Wɔayɛ no ama mmeae a ɛwɔ server racks a ɛwɔ density a ɛkorɔn, power distribution units (PDUs), ne industrial control consoles, saa nhyehyɛe yi de high-density core panels ne cold-rolled steel welded pedestals bom. Ɛde fam ase kwan a ɛda adi pefee ma HVAC, tumi, ne nhama bere a egyina adesoa a ɛyɛ den a ɛyɛ static ne dynamic load profiles a enni daa structure deformation ano.
Nneɛma Titiriw a Ɛwɔ Hɔ
High-Density Nkyekyɛmu Core:Ɔde high-density cementitious particle board anaasɛ ne nyinaa-dade welded shell adansi di dwuma de ko tia point-adesoa abubu.
Rigid Understructure Grid: Ɔde ne nsa kyerɛɛ ne so.Stringer ne pedestal nhyiam ahorow a wɔde bolted abɔ mu no to panels mu kɔ wimhyɛn a ɛda fam a ɛyɛ den mu, na eyi afã horow a ɛsakra wɔ nnesoa a ɛrehuruhuruw ase no fi hɔ.
Ɔsorokɔ a Wɔyɛ no Pɛpɛɛpɛ:Heavy-gauge threaded dade abaa ne locking nuts ma kwan ma pɛpɛɛpɛ wie fam sorokɔ (FFH) leveling fi 150mm kosi 2000mm.
Electrostatic Dissipation (ESD) a ɛma anyinam ahoɔden a ɛma anyinam ahoɔden yɛ adwuma:Factory-a wɔde di dwuma High-Pressure Laminate (HPL) anaasɛ conductive vinyl soro awie no kura soro resistivity wɔ 1 × 106 ne 1 × 109 ohms ntam.
Nhyehyɛe a Wɔahyehyɛ
Fam Nneɛma a Wɔde Yɛ Nneɛma:Modular panels a wotumi sesa (mpɛn pii no 600mm × 600mm) a ɛwɔ ahobammɔ electro-galvanized anaa epoxy-coated dade nwoma.
Pedestal Nhyiam:Ɛyɛ base plate (min. 100cm2), vertical threaded stud (M18/M20), die-cast dadeɛ ti a ɛwɔ stringer locating tabs a wɔaka abom, ne leveling nut.
Nhama a wɔde bɔ nhama:Snap-on anaa bolted tubular dade akwan a ɛka pedestal ti bom ma ɛyɛ grid a ɛyɛ den, ɛma afã a ɛyɛ den ne adesoa tumi a ɛyɛ pɛ kɔ soro.
Gasket ahorow:Conductive PVC/rubber padding a ɛbata pedestal ti ho de yi acoustic vibration fi hɔ na esiw dade-on-dade friction ano.
Mfiridwuma ho Nkyerɛkyerɛmu & Sɔhwɛ a Wɔde Di Dwuma
|
Parameter a wɔde kyerɛ |
Nsɛm a Wɔakyerɛkyerɛ Mu |
Certified Standard / Sɔhwɛ Ɔkwan a Wɔfa so Yɛ |
|
Panel Nsusuwii ahorow |
600 mm × 600 mm (Wɔwɔ ne kɛse a wɔahyɛ da ayɛ) |
Nneɛma a wɔyɛ no abodwokyɛre: ±0.2 mm |
|
Standard Panel a Ɛyɛ Den |
30 mm / 35 mm / 40 mm |
Nsusuwii mu nokwaredi sɛnea ISO 9001 QC kyerɛ |
|
Nneɛma Titiriw a Wɔde Yɛ Adwuma |
Semɛnte Nneɛma nketenkete Board / Calcium Sulfate / Welded Dade Shell |
Nneɛma a ɛyɛ den: Ɛboro anaasɛ ɛyɛ pɛ 1500 kg/m3 (Calcium Sulfate) . |
|
Concentrated Adesoa Tumi |
CISCA Adesuakuw a ɛto so 8 / Adesuakuw 10 (3.56 kN kosi 4.45 kN) . |
Third-Afã a wɔagye atom: SGS Sɔhwɛ Amanneɛbɔ wɔ fael so |
|
Adesoa Tumi a Etwa To |
Ɛboro anaasɛ ɛne 11.1 kN yɛ pɛ |
Wɔasɔ ahwɛ sɛnea CISCA / EN 12825 nhyehyɛe ahorow te |
|
Adesoa Tumi a Ɛyɛ Pɛ |
15 kPa kosi 22 kPa |
Deflection a ɛsen biara a ɛtra hɔ daa < 0.25 mm |
|
Fam a Wɔawie (FFH) . |
150 mm kosi 2000 mm |
Adjustable via M18/M20 heavy-gauge dade abaa |
|
Nneɛma a Ɛko Tia Nneɛma a Ɛwɔ Anim |
106 kosi 109 ohms |
Wɔasɔ ahwɛ wɔ EOS/ESD S7.1 so |
Seismic Adwumayɛ
Wɔayɛ no sɛ wɔmfa nkɔ mmeae a asasewosow tu a ɛhwehwɛ sɛ wɔyɛ nhyehyɛe a emu yɛ den denneennen.
Afã Adesoa a Ɛko Tia:Ɛgyina tumi a ɛtwetwe a ɛkɔ soro no ano denam stringer nkitahodi a emu yɛ duru-a ɛyɛ bolted ne structural seismic gussets so.
Sway Mitigation a Wɔde Bɛtew:Ɛde diagonal bracing tubes a wɔde ahyɛ subfloor substrate no so ka ho, na ɛto akyi a ɛtwetwe dodo bere a asasewosow sisi no ano hye.
Mmuae a Ɛyɛ Nnam:Wɔayɛ no sɛnea ɛbɛyɛ a wobesiw panel dislodgement fi pedestal ti bere a dynamic structural oscillations.
Nnwuma a Wɔtaa De Di Dwuma
Hyperscale Data Centers: Nsɛm a Wɔka Kyerɛ:Ɛboa high-density server racks, blade servers, ne battery backup nhyehyɛe a emu yɛ duru. (Nnansa yi ara wɔde dii dwuma: Tier III Data Center Facility a ne kɛse yɛ m2 12,000, Frankfurt, Germany).
Nneɛma a Wɔde Kɔ Colocation:Ɛma modular adaptability ma multi-tenant server halls a ɛhwehwɛ sɛ wɔtaa hyehyɛ no foforo.
Industrial Control & SCADA Pia Ahorow:Adan mu automation consoles a emu yɛ duru, anyinam ahoɔden switchgear, ne monitoring terminals. (Nnansa yi ara a wɔde adi dwuma: Regional Power Grid Dispatch Control Center).
Adan a Wɔde Tew Nneɛma & Semiconductor Labs:Ɛhwɛ abɔdeɛ nketenkete awoɔ ntoatoasoɔ so na ɛhwɛ mframa a ɛwɔ fam a wɔahyɛ no den (laminar airflow) a ɛkɔ soro-mu.
Installation & Nneɛma a Wɔde Yɛ Adwuma
Subfloor Ahosiesie:Ɛhia sɛ kɔnkrit a ɛho tew, a ɛyɛ pɛpɛɛpɛ a wɔde anti-mfutuma kɔnkrit sealer ayɛ ho adwuma.
Installation Tolerances: Ɔde ne nsa kyerɛɛ ne so.Wɔde laser leveling nnwinnade a wɔde sii hɔ; vertical height tolerance anohyeto ma ±1.5 mm wɔ mita 5 span.
Nneɛma a Wɔatwa no Amanneɛbɔ:Factory anaa site-mfiri a wɔde ayɛ cable grommets, brush tiles, ne directional airflow grates (perforation rates fi 15% kosi 55%) a wɔde afrafra tẽẽ wɔ nhyehyɛe no mu.
Gyinapɛn & Nneɛma a Ɛyɛ Pa
Wɔayɛ no sɛnea amanaman ntam sɔhwɛ ho nhyehyɛe ahorow hyia:
CISCA (Ceiling & Interior Systems Adansi Fekuw): Ɔdansifo Fekuw:Adwumayɛ ho nkyerɛkyerɛmu a ɛfa akwan a wɔfa so kɔ fam no ho.
EN 12825: 1 .Raised access floors standard (Wɔkyekyɛ mu denam adesoa a ɛbubu ne deflection so).
ASTM E84: 1 .Nneɛma a ɛhyew wɔ asase ani (Flame Spread Index 0, Smoke Developed Index Ennu anaasɛ ɛne 25 yɛ pɛ).
ISO 9001 na ɛwɔ hɔ:Nneɛma a wɔde di dwuma yiye ho nhyehyɛe a ɛkyerɛ nneɛma a wɔde yɛ nneɛma a wɔde yɛ adwuma, stamping, welding, ne coating akwan.
Nneɛma a Wɔyɛ & Nnwuma Mmoa
Nnwinnade a Wɔde Yɛ Nneɛma:Automated multi-station dade stamping press, robɔt MIG welding nkwammoaa, ne electrostatic powder coating nhama.
Wɔ-Fie Sɔhwɛ mu:Production batch biara fa ɔsɛe adanse-adesoa sɔhwɛ mu ma concentrated, rolling, ne awiei adesoa anohyeto.
Mfiridwuma ho Mmoa:CAD nhyehyeɛ awoɔ ntoatoasoɔ a wɔahyɛ da ayɛ, adesoa nkyekyɛmu akontabuo, ne on-site mfiridwuma sohwɛ paket ma-skala deployments akɛseɛ.
Nsɛm a Wɔtaa Bisa
Asɛmmisa: Dɛn ne adesoa a ɛsen biara a ɛwɔ nhyehyɛe yi mu, na ɔkwan bɛn so na wɔsɔ hwɛ?
A: Yɛn heavy-duty panels boa concentrated adesoa a ɛkɔ 4.45 kN (CISCA Grade 10) a daa deflection a ennu 0.25 mm. Sɔhwɛ de 25 mm × 25 mm indenter nan di dwuma wɔ panel no fã a ɛyɛ mmerɛw sen biara (mfinimfini ano anaa ntwea so) sɛnea CISCA ne EN 12825 akwankyerɛ kyerɛ no, a wɔde afiri a ɛto so abiɛsa-aduruyɛbea amanneɛbɔ ahorow a wɔagye atom gyina akyi.
Q: Ɔkwan bɛn so na nhyehyɛe no di adesoa a ɛrehuruhuruw a efi server racks a emu yɛ duru mu ho dwuma bere a wɔde instɔlehyɛn no?
A: Nhyehyɛe no de bolted stringer grid framework a wɔaka abom ne high-density cementitious anaasɛ ne nyinaa-dade welded panels. Saa nhyehyeɛ yi kyekyɛ dynamic rolling loads (wɔasɔ ahwɛ kɔsi 4.5 kN rolling load a 10,000 cycles) wɔ pedestals pii so, siw localized panel collapse anaa stringer buckling ano.
Q: Nsonsonoe bɛn na ɛda calcium sulfate ne cementitious particle board cores ntam ma high-load applications?
A: Cementitious particle boards ma mfitiaseɛ compressive ahoɔden a ɛkorɔn ne nsuo a ɛko tia a ɛkyɛn so, na ɛma ɛyɛ nea ɛho ka-tu mpɔn ma standard data center environments. Calcium sulfate cores ma ogya a ɛko tia a ɛkorɔn (A1 non-combustible), density a ɛkorɔn, acoustic damping soronko, ne adesoa a etwa to a ɛkorɔn ma adesoa tebea horow a emu yɛ den.
Asɛmmisa: So saa fam nhyehyɛe a wɔama so yi betumi ne asasewosow beae a wɔhwehwɛ dedaw no abom?
A: Yiw. Wɔ Seismic Zones 3 ne 4 ho no, yɛde seismic pedestal heads a emu yɛ duru-duty, gauge stringers a emu yɛ duru, ne structural lateral bracing struts a ɛkyekyere pedestal network no tẽẽ kɔ structural slab no so ma, na esiw torsional twisting ne structural collapse ano.
Asɛmmisa: Dɛn ne bere a wɔde di kan ne nneɛma a wɔde kyekyere nneɛma ho nkyerɛkyerɛmu ma amanaman ntam adwuma a wɔde bɛmena?
A: Standard production lead times fi 20 kosi 30 nna a egyina volume ne amanne cutout ahwehwɛde. Wɔde panels asisi hɔ tẽẽ wɔ ISPM 15-compliant heat-treated wood pallets, edge-de high-density foam abɔ ho ban, de dade banding abɔ ho, na wɔde stretch film a nsuo ntumi nkɔ mu abɔ ho ama po so nneɛma a ahobammɔ wom.
