Wɔayɛ ama nnɛyi nnwuma, FINECO modular raised access kɔmputa fam no di mu wɔ ahoɔden, cable management mmerɛw, ne adesoa a ɛkorɔn-soa tumi. Modular kwan no ma wotumi de si hɔ yiye na ɛyɛ nsakrae ma wɔsan hyehyɛ. Ɛhoahoa ne ho sɛ ɛwɔ su horow a ɛko tia-static ne ogya-resistant, ɛhwɛ ma ahobammɔ, nhyehyɛe yiye tebea. Ɛfata ma data mmeae, adwumayɛbea, ne mfiridwuma mmeae-ma adwumayɛ ne afɛfɛde yɛ kɛse denam ano aduru a ɛtra hɔ kyɛ so.
Aguade ho nkyerɛkyerɛmu
|
Nhwɛsoɔ |
Adesoa a Wɔde Ahyɛ Mu |
Nkɛntɛnso Adesoa |
Adesoa a Etwa To |
Adesoa a Ɛyɛ Pɛ |
Adesoa a Ɛbɔ (N) . |
||
|
LB |
N |
N |
N |
N/㎡ |
mpɛn 10 |
10000 mpɛn pii |
|
|
FS800 na ɛwɔ hɔ |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 na ɛwɔ hɔ |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 na ɛwɔ hɔ |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 na ɛwɔ hɔ |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 na ɛwɔ hɔ |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* Sɛnea CE& CISCA sɔhwɛ akwan a wɔkamfo kyerɛ wɔ Access Floors ho kyerɛ no
600 * 600mm / 24 '* 24' (610 * 610mm) na ɛwɔ hɔ
Product feature ne dwumadie
Wɔayɛ FINECO modular raised access kɔmputa fam sɛnea ɛbɛyɛ a ɛbɛma ano aduru a ɛyɛ den na wotumi de ho to so ama nnɛyi nnwuma ahiade ahorow. Wɔde dade a ɛyɛ den-ahoɔden kɛse, anti-nsɛe ne ogya-a ɛko tia ade a wɔde kata so na ɛyɛe, saa fam yi ma adesoa soronko-soa tumi ne bere tenten-a ɛtra hɔ kyɛ. Ne modular nhyehyɛe no ma wotumi de si hɔ ntɛmntɛm, wɔsan hyehyɛ no mmɔdenbɔ biara, na wotumi kɔ fam nneɛma a wɔde di dwuma a ɛnyɛ den, na ɛma adwumayɛ tu mpɔn. Cable management channels a wɔaka abom no ma mframa no kɔ yiye na ɛhyehyɛ tumi/data cableling yiye, na ɛtew basabasayɛ so. Ɛyɛ nea eye ma tebea horow a ɛyɛ den te sɛ data centers, mfiridwuma mmeae, ahyɛde sohwɛ dan, ne aduruyɛdan ahorow, saa dade a wɔama so fam yi hwɛ hu sɛ ahobammɔ, nsakrae, na ɛne amanaman ntam gyinapɛn ahorow hyia, na edi mmeae a ɛyɛ nnam ahwehwɛde ahorow ho dwuma a wonsiesie kakraa bi.
Aguade ho nsɛm
FINECO modular raised access kɔmputa fam da nsow wɔ ne precision-engineered features ma top-notch adwumayɛ. ESD ano trims guarantee seamless conductivity ne static dissipation wɔ fam nhyehyɛe no nyinaa. Wɔde epoxy powder-coated anti-rust kwan a emu yɛ den na ɛyɛ ade biara ho adwuma, na ɛma wonya awerɛhyem sɛ ɛbɛko atia nsɛe wɔ mmeae a ɛhɔ yɛ nwini anaasɛ ɛyɛ den. Multiple anti-static laminate options (HPL, PVC, ceramic) ma kwan ma customizable afɛfɛde bere a kura 10 ^ 4-10 ^ 9Ω soro resistance. Reinforced bolted stringers ma structure stability kɔ soro, na ɛma wotumi boa point loads a ɛkɔ 890kg. Fire-rated cores di ASTM E84 Class 1 gyinapɛn ahorow so. Gasket-a wɔatoto anoano a wɔpaw no ma mframa-dan a ɛyɛ den ma dan a ɛho tew anaasɛ nhyɛso a wɔde di dwuma, na ɛkyerɛ sɛnea wotumi yɛ nneɛma pii wɔ mfiridwuma ho nsɛm mu.
Nneɛma a Wɔde Yɛ Adwuma
Wɔayɛ FINECO modular raised access kɔmputa fam no sɛnea ɛbɛyɛ a ɛbɛbata gyinapɛn a ɛsen biara a ɛfa sɛnea ɛyɛ papa ne nea ɛtra hɔ kyɛ ho. Nneɛma a ɛyɛ fɛ ne nneɛma a wɔyɛ no pɛpɛɛpɛ na ɛyɛ fapem no. Wɔde ST14 ne SPCC dadeɛ a ɛkorɔn-grade, a wɔdi ho afahyɛ wɔ wɔn ahoɔden a ɛda nsow, nsɛeɛ a ɛko tia, ne formability, na ɛkura structure integrity mu wɔ nsɛnnennen mu na ɛyɛ afã titire

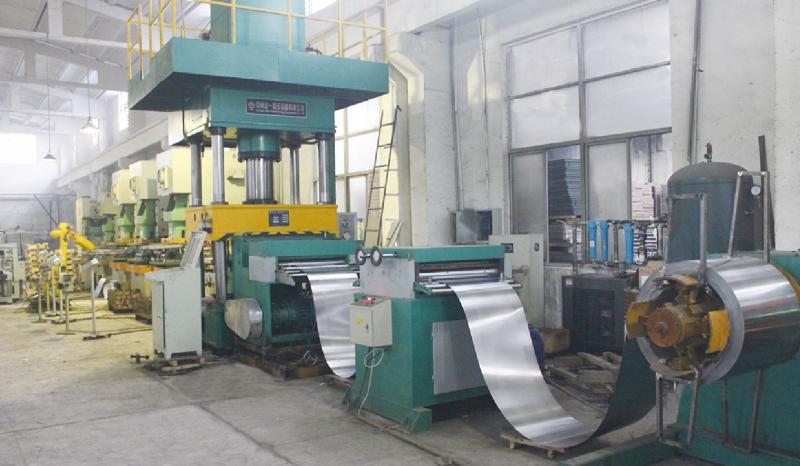

Ɛdenam foam kɔnkrit a emu yɛ hare a wɔde ka ho so no, adwumayɛ tu mpɔn kɛse. Ɛtew emu duru nyinaa so na ɛma ɔhyew a ɛkorɔn, nnyigyei a ɛtwetwe, ne eco-adamfofa su ahorow. Nneɛma a wɔyɛ no de ne ho to mfiri a emu yɛ duru-a ɛyɛ den-tonnage press so de nhyɛso mpo di dwuma na wonya ahwɛyiye nsusuwii, yi nneɛma mu sintɔ ahorow fi hɔ na ɛma awerɛhyem sɛ dimensional pɛpɛɛpɛ.
Nneɛma a ɛkɔ anim ne mfiridwuma-grade mfiri a wɔde frafra mu no ma wonya nneɛma a ɛboro nnwuma gyinapɛn so bere nyinaa wɔ nkwa tenten, ahotoso, ne adwumayɛ mu yiyedi ho, na ɛma adetɔfo akwanhwɛ a emu yɛ den sen biara no ba mu.
Nneɛma a Wɔde Kɔma ne Nneɛma a Wɔde Kɔma
FAQ
Q: 1. Ɔkwan bɛn so na wɔde modular raised access kɔmputa fam si hɔ?
A: Mpɛn pii no, nea ɛka nhyehyɛe a wɔde besisi hɔ no ho ne sɛ wɔbɛma fam a ɛwɔ fam no ayɛ pɛpɛɛpɛ, wɔde nnyinaso a ɛboa no besi hɔ, wɔde nnua anaa nhama a wɔde bɛka abom, na wɔde fam ntama asisi hɔ. Wobetumi de nnyinaso no asesa ne sorokɔ ma ɛne ahiade pɔtee bi ahyia. Wɔatoto nhama a ɛda ntam no ano sɛnea ɛbɛyɛ a mframa ntumi nkɔ mu na wɔde anoano trim wie ma ahobammɔ.
Q: 2. Nneɛma bɛn na wɔde modular raised access kɔmputa fam na ɛyɛ?
A: Wɔtaa de dade a wɔde semɛnte anaa laminate ayɛ, anaa aluminium ma emu duru so tew na ɛyɛ panels. Bio nso, woodcore ne calcium sulphate core a wobetumi apaw wɔ hɔ. Wɔtaa de dade anaa aluminium na ɛyɛ nnyinaso ne nea wɔde gyina so. Wɔ mmeae a ɛlɛtrɔnik mfiri wɔ mu no, anti-static finishes abu so de asiw static discharge ano.
Asɛmmisa: 3. Ɔkwan bɛn so na metumi akura modular raised access kɔmputa fam?
A: Nhwehwɛmu a wɔbɛyɛ daa sɛ ebia nnua a ayɛ mmerɛw anaasɛ nneɛma a wɔde gyina so a asɛe no ho hia. Ɛho hia sɛ wɔde vacuum anaa popa fam baabi a ɛwɔ fam no fi hɔ de yi nneɛma a asɛe no fi hɔ. Kwati adesoa a emu yɛ duru a ɛboro nea wɔahyɛ da ayɛ no so. Sesa panels a asɛe wɔ bere a ɛsɛ mu na hwɛ hu sɛ cable nhyehyɛe na asiw akwanside ahorow ano.
Q: 4. Ɔkwan bɛn so na modular raised access kɔmputa fam ma mframa a ɛkɔ data centers no tu mpɔn?
A: Ɛdenam plenum a wɔde besi fam ase so no, wobetumi de mframa a ɛyɛ nwini adi akɔneaba afa nnua a wɔato mu anaa mframa a wɔde fa mu akɔ server racks so. Wɔtow mframa a ɛyɛ hyew no gu wɔ soro, na ɛyɛ closed-loop cooling system a ɛma ahoɔden a wɔde di dwuma yiye no tu mpɔn na esiw mmeae a ɛyɛ hyew a ɛbɛba no ano.
Q: 5. So modular raised access kɔmputa fam ogya-tumi gyina ano?
A: Nneɛma dodow bi a ɛwɔ modular raised access computer floors mu no ne ogya ahobammɔ gyinapɛn ahorow hyia (sɛ nhwɛso no, Class A rating). Dade ne ogya-retardent laminates ka nneɛma a wɔde tew asiane ahorow so no ho. Nanso hwɛ mpɔtam hɔ mmara ahorow mu na hwɛ hu sɛ wɔde ogya a wɔde siw ogya ano nhyehyɛe a ɛfata ahyɛ mu.
Tags a ɛyɛ hyew .: modular a wɔama so kwan kɔmputa fam, China modular a wɔama so kwan kɔmputa fam manufacturers, suppliers, factory
